Bleskomat DIY Kit + Case

150.00

All the parts needed to build your own Bleskomat DIY project. The 3D-printed case is included with this product.

Includes Bleskomat Platform Subscription (120 days)

SKU: N/A Category:

Description

The Bleskomat do-it-yourself kit includes all the internal parts needed to build your own version of the Bleskomat DIY project. Manual assembly is required. Past experience with DIY / hobby electronics projects is recommended but not absolutely necessary. Detailed assembly and debugging instructions can be found in the bleskomat-diy project linked above.

Includes Bleskomat Platform Subscription (120 days)

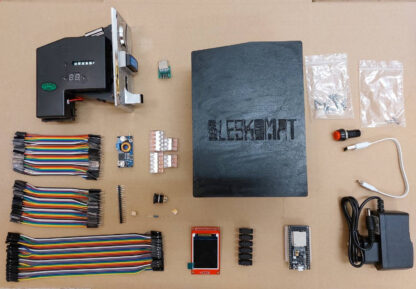

Parts List

  • ESP-WROOM-32 devkit
  • 1.8″ 128×160 TFT
  • 10k ohm resistor
  • DC 5.5/2.1mm na DIP adapter LED
  • Micro USB cable
  • Step-down converter XL4005
  • USB F to DIP adapter
  • Jumper wires (M-M)
  • Jumper wires (M-F)
  • HX-616 Coin Acceptor
  • Button
  • 12V DC Power Supply

Documentation

3D-Printed Case

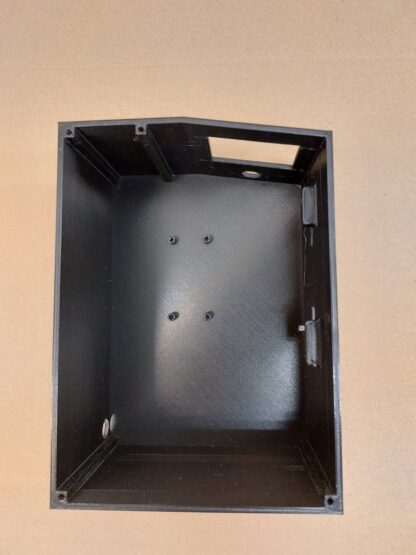

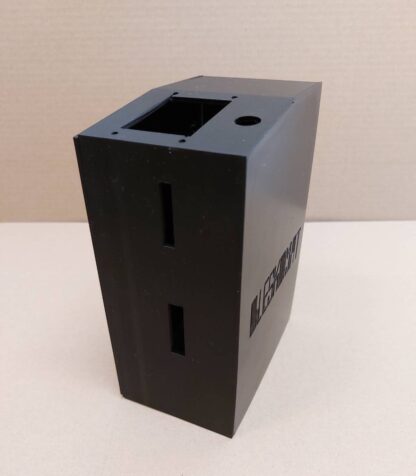

3D-printed case for the Bleskomat DIY project. Made from PETG filament – chemical, heat, and UV resistant. The exterior of the case features holes for the button, power socket, coin acceptor, and the TFT display with four holes for mounting screws. The interior features a built-in mount for the ESP32 devkit and HX616 coin acceptor.

The case’s dimensions are 180 x 130 x 83 mm.

Additional information

Weight 0.5 kg
Dimensions 180 × 130 × 8.3 cm
Case Color

Black

Power adapter socket type

Socket Type C (Europe)
